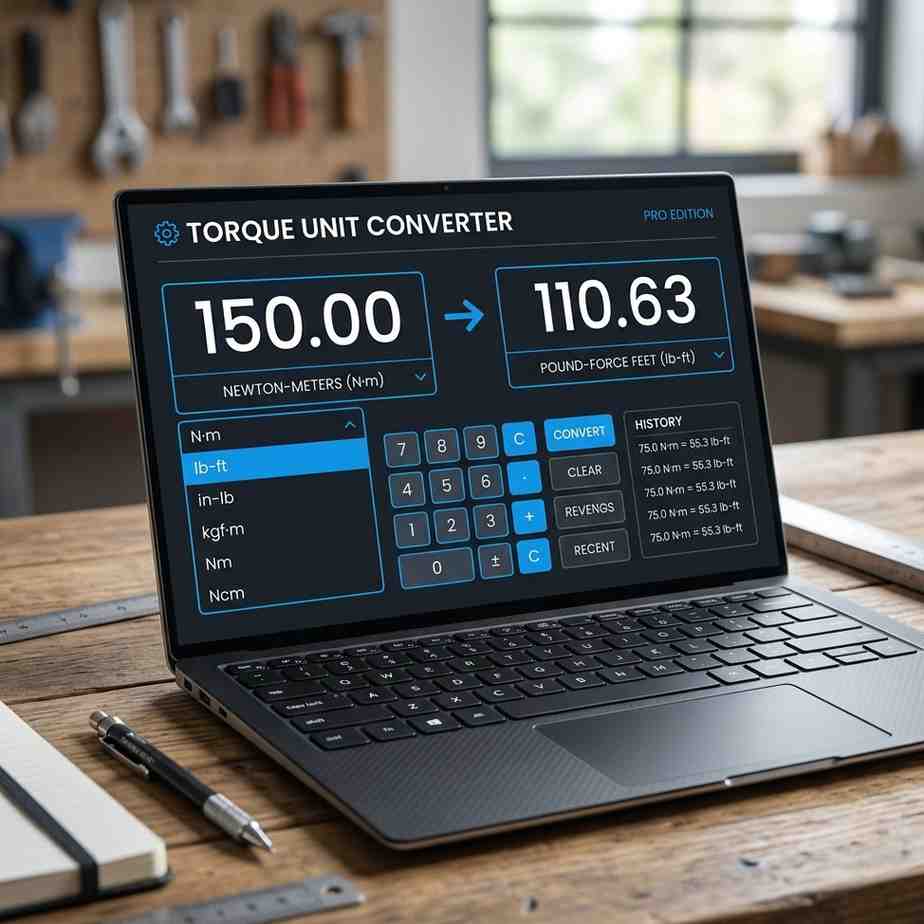

Torque Converter Calculator
(Nm ↔ lb-ft)

The Definitive Guide to Torque, Physics, and Fastener Engineering

Whether you are tightening lug nuts on a passenger car, specifying structural fasteners for a bridge, or designing robotics drives, torque is the central metric governing rotational systems. Below, our engineering team breaks down the physical fundamentals, manual conversion equations, official NIST coefficients, and mechanical fastening principles necessary for professional-grade design and maintenance.

1. The Physics of Torque: Vectors, Rotational Force & Leverage

In classical mechanics, torque (also referred to as the "moment" or "moment of force") measures the tendency of a force to rotate an object about an axis. Just as a linear force causes an object to accelerate lineally, torque causes an object to undergo angular acceleration.

Mathematically, torque is defined as the cross product of the position vector (the lever arm) and the force vector. The magnitude of torque depends on three critical variables: the magnitude of the applied force, the length of the lever arm, and the angle between the two.

To maximize torque, the force vector must be applied at exactly a 90-degree angle (perpendicular) to the lever arm, where \(\sin(90^\circ) = 1\). If the force is applied parallel to the lever arm (\(\theta = 0\)), no rotation is generated, resulting in zero torque.

The Vector Nature and Right-Hand Rule

Torque is a pseudovector (or axial vector). Its direction is perpendicular to both the position vector and the force vector, pointing along the axis of rotation. Engineers determine this direction using the Right-Hand Rule: curl the fingers of your right hand in the direction of the rotational movement caused by the force; your extended thumb points in the direction of the torque vector.

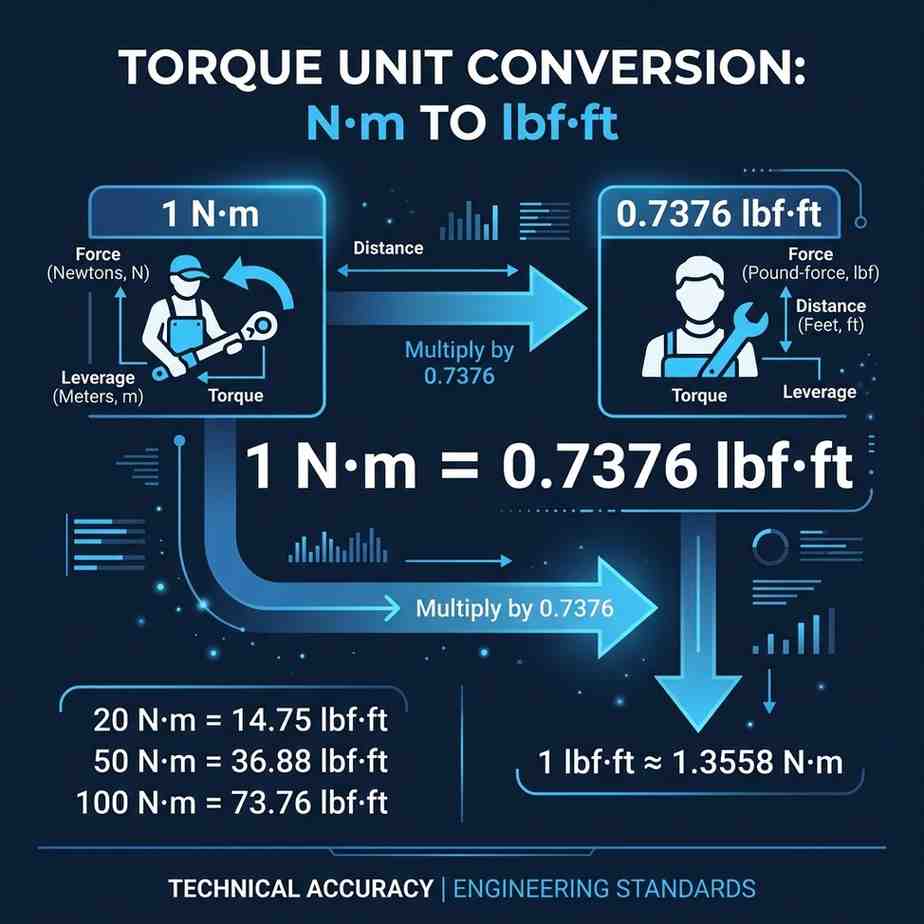

2. Manual Torque Conversions: Step-by-Step Examples

While our interactive tool does the math instantly, understanding the underlying conversions is essential for double-checking calculations in the field. Below are three common real-world examples worked out step-by-step.

3. Official NIST Torque Unit Conversion Coefficient Table

To convert from any unit in the left column to Newton-meters (N·m), multiply the input value by the multiplier. To convert from Newton-meters to any unit, divide the value by the multiplier. All factors are aligned with NIST (National Institute of Standards and Technology) standard guidelines.

4. Fastener Engineering: Preload, Friction, and Bolt Yield

When you apply torque to a bolt, you are not simply spinning a screw. You are using the bolt as a heavy spring. Tightening the bolt stretches it, creating a clamping force (tension or preload) that holds two components together. If the preload is too low, the joint can separate or loosen under load. If the preload is too high, the bolt will yield (permanently stretch) or snap.

The Torque-Tension Equation (T = k × D × F)

To estimate how much torque is required to achieve a specific preload, engineers use the following fundamental formula:

Friction plays a massive role in this equation. In a standard dry steel connection, approximately 50% of the applied torque is consumed overcoming friction under the bolt head, 40% overcoming friction in the thread interfaces, and only 10% is actually converted into useful clamping force (preload).

Common Friction Coefficients (k-factors):

• k = 0.20: Dry, plain steel threads. Requires high torque to achieve target clamp force.
• k = 0.15: Lightly oiled steel. Friction is reduced; same torque yields higher clamping force.
• k = 0.10 to 0.12: Threads treated with anti-seize or molybdenum disulfide lubricant. Extreme care is required as over-tensioning is highly likely if torque settings are not adjusted downwards.

5. Frequently Asked Questions (FAQ)
